SAML: A technical primer

A technical overview of SAML works, and how it fits into your product and your customer’s business

If you just want to start integrating SAML right away, check out the SAML quickstart. You can get a SAML integration working end-to-end within a few hours.

This article is for folks who want to understand SAML at a deeper technical level, or how they could implement SAML without using an open-source library like SSOReady.

SAML (“Security Assertion Markup Language”) is a source of a lot of confusion for developers. This article is a technical primer on some of the most common questions engineers and other technical folks have about SAML:

  1. Why do businesses want their software vendors to support SAML? In other words, how does SAML fit into my customer’s business? Why do end users and C-level executives at my customer care about SAML?
  2. How should I fit SAML into my existing software? What parts of my software stack need to be “SAML-aware”? How lightweight can I make my integration? (The answer: quite lightweight. Only a small part of your codebase needs to know about SAML at all.)
  3. At a technical level, how does SAML even work? What does the SAML protocol even do? What kinds of security guarantees does it give me, or what assumptions can I make about it?

What is the point of SAML?

Most likely, you’ll first hear about SAML because your customer wants your product to support it. Customer requests are the most common initial reason companies add support for SAML. But why does your customer want SAML support?

One click to login: why your users like SAML

Your users probably don’t know what SAML is. What they do know about is their company’s identity provider. The most popular one is called Okta; other common competitors to Okta include Microsoft Entra (formerly “Azure Active Directory”) and Google Workspace. There are dozens more vendors in this space (big companies often build their own internal alternatives), and they all use the SAML protocol.

Even though your users don’t know what SAML or what an identity provider is, they do love what it gives them: one-click login experience for every SaaS tool they use at work, a so-called Single Sign-On (SSO) experience.

For example, here’s what Okta looks like for your users. When your user opens their computer at work in the morning, this is what they see:

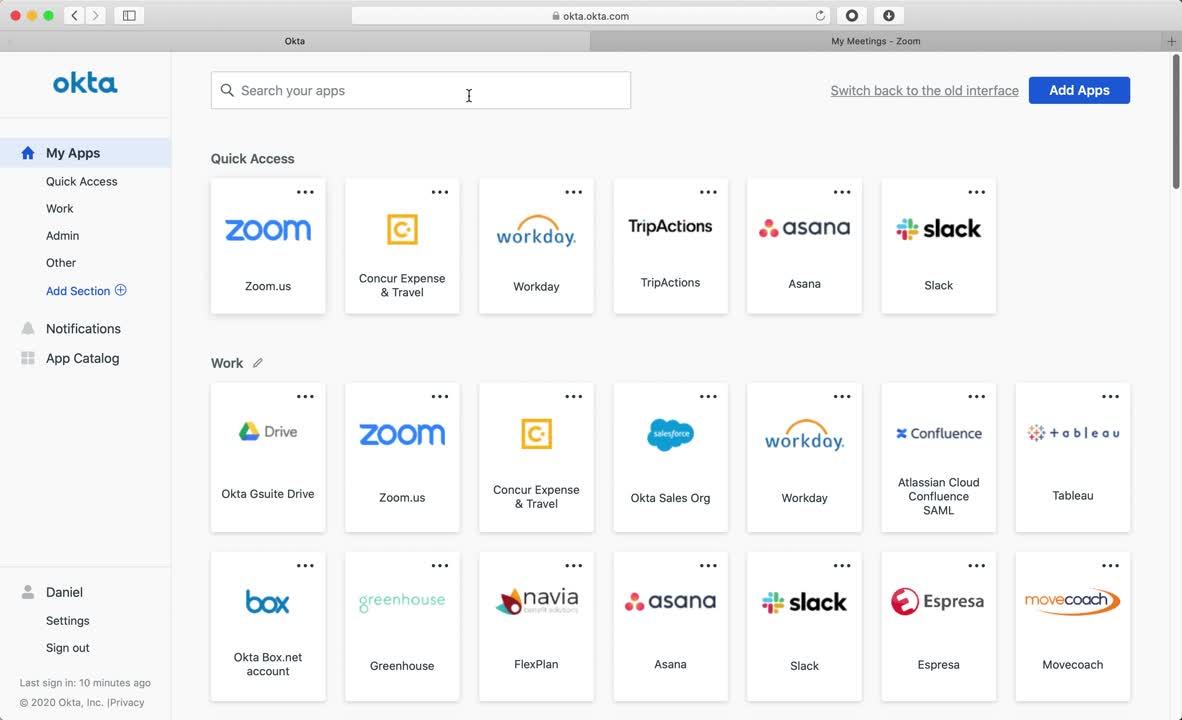

A screenshot of Okta. Every app they use at work gets a 'tile'. Click on a tile, and you're now logged into it.

At work, your users only need one password: their identity provider password. They don’t need to set up or remember passwords anywhere. They might find logging into Okta itself a bit annoying, because their IT team requires two-factor authentication to log into Okta, but logging into everything else is a breeze.

One click to fire: why your customer’s CISO likes SAML

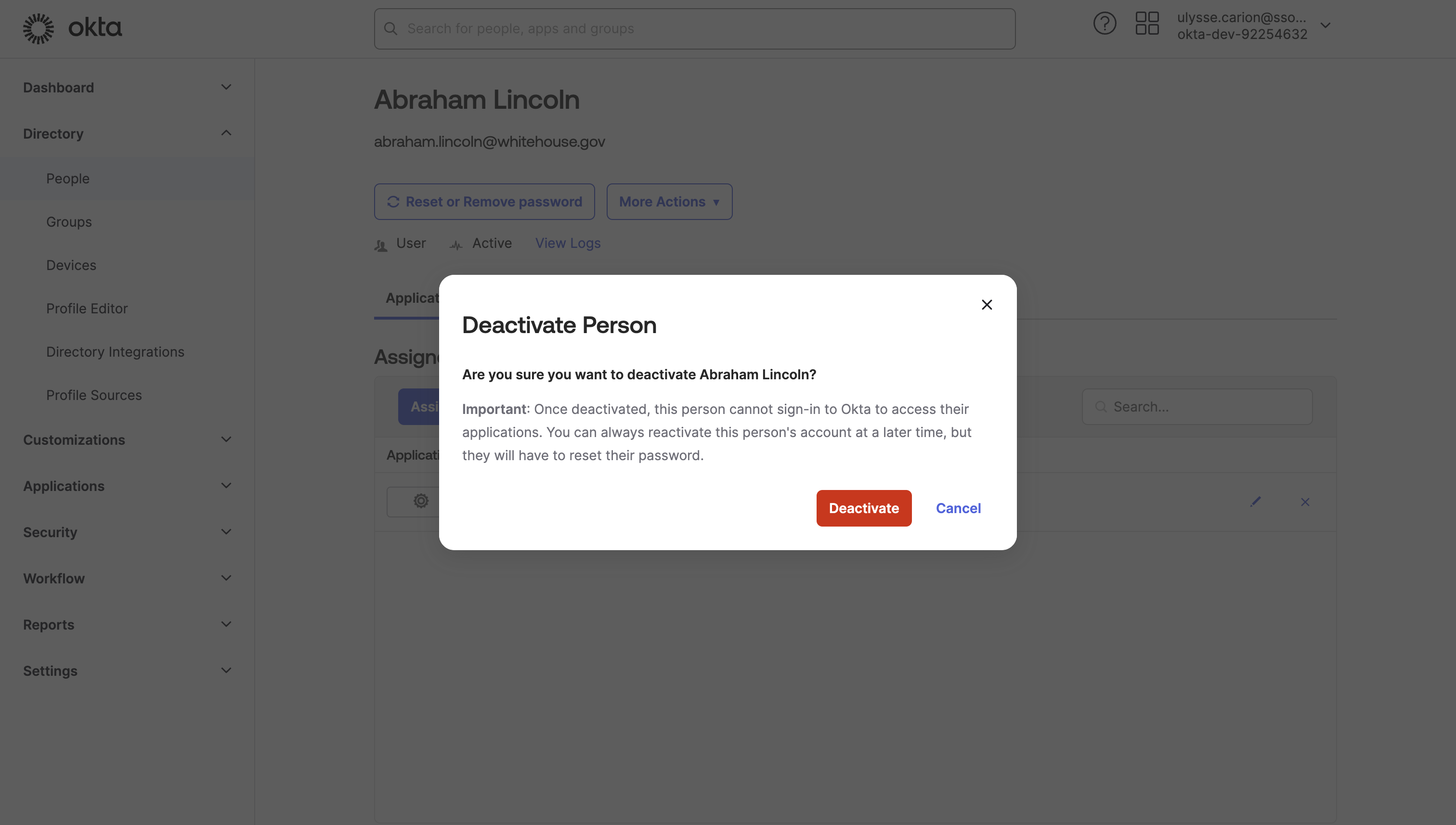

A screenshot of an IT admin deprovisioning an Okta user. CISOs love SAML because it lets them lock down all of an employee's accounts from a single place.

Your customer’s CISO (Chief Information Security Officer) is in charge of making sure company data is secure. Concretely, the biggest things they worry about include:

  • Employees accidentally leaking data, because they use the same password everywhere and that password got breached
  • Employees intentionally leaking data, because they were fired and want revenge

CISOs love vendors that support SAML because they can put those vendor’s apps inside the corporate identity provider, e.g. Okta. From there:

  • Employees don’t need to have a password for that vendor. They just log in using the identity provider. The identity provider uses the SAML protocol to securely log the employee into the vendor’s app.

  • When the company fires someone, an IT admin doesn’t have to manually go in and delete that employee’s account from the vendor. Once you remove an employee from Okta, then the identity provider will stop letting that employee do SAML-based logins into anything. The fired employee is locked out of every work application.

But none of this works if your application doesn’t implement SAML. SAML is the protocol that powers single-sign on, which lets identity providers like Okta log employees into your app without using a password.

This is why many CISOs will go as far as to require SAML support out of all vendors. Many companies have regulatory, contractual, or compliance obligations to ensure employees don’t use insecure passwords and are properly off-boarded after being fired. CISOs meet those obligations using SAML.

The “off-board employees after being fired” objective also pushes your customers toward wanting support for SCIM. SAML lets your customers enforce “fired employees can’t log in again”, and SCIM additionally lets your customers enforce “fired employees’ accounts are automatically deactivated”.

The rest of this article is all about SAML, but SSOReady can help you implement SCIM, too..

Fitting SAML into your existing software

If you read the SAML specification, or look at documentation written about SAML (especially if those docs were written in the early 2000s), it might seem like SAML is a framework that can subsume or replace all of auth. Don’t do this.

”SAML solves everything” was a hot idea in 2002, but the industry has moved away from this. The contemporary consensus is that SAML isn’t a great protocol. Just use SAML as a way to securely find out what a corporate user’s email address is.

You should think of SAML as a self-contained login method. You probably already let your users log into your product using things like username+password, email magic links, “Log in with Google”, etc. Think of SAML as another login method.

SAML is a protocol that lets your customer’s employees securely prove to you what their email address is, without you having to worry about sending them confirmation emails, verifying they’re still employed at the company, or that they belong to the right team at the company.

Roughly speaking, only two parts of your overall system need to know about SAML:

  1. Your login page needs to know that SAML is a login option for a customer. There are a couple common UI flows for doing this. We cover these in depth in the Integrating SAML with your Login UI guide.

    Ultimately, your login page will, at a technical level, initiate a SAML login.

  2. Your login backend system needs to be able to handle SAML assertions. We cover this in depth in the Handling SAML Logins guide.

    Ultimately your backend runs an HTTP endpoint, and your user’s web browsers will POST SAML payloads there. You verify those payloads, and use your normal session system (the same one you use for other kinds of logins) to create a session for the email you securely extracted from the SAML payload.

If you don’t use an open-source library like SSOReady to help implement SAML, the lack of structure that SAML imposes on you — as well as historical baggage from the early days of SAML — can lead you astray in two common ways:

  1. SAML supports the idea of putting “metadata” on a login session, configuring “conditional access”, and lots of other fancy functionality. It might seem like supporting SAML means having your entire system be able to honor these advanced SAML-specific features.

    Without getting into too much detail on what that functionality was meant to achieve in 2002, suffice it to say that most modern software systems don’t use this functionality at all.

    If you treat SAML as just a way to get a user’s email, you will be in line with almost all other SAML-supporting software your customer is used to. CISOs expect, and will be satisfied with, this kind of simple integration.

  2. SAML is, unfortunately, much more annoying to configure than any other login method you already support. The technical details of these SAML settings are covered later in this article here.

    You and your customer need to exchange settings about one another before a SAML login can even begin. But that configuration happens “offline” — if you’re not using SSOReady, you’ll implement it by exchanging informal emails with your customer. If you do use SSOReady, you can have your customer self-serve configure their SAML setup.

    You don’t typically have to write any UI or backend code related to configuring SAML configuration, beyond having some way for your engineers to store the SAML settings you got from your customer. You just need to store three small pieces on your backend (two strings plus an X.509 certificate), and those settings change very infrequently.

SAML at a technical level

This section gets quite technical. You don’t need to understand this material to understand how to use SSOReady. This section is, in a way, a high-level overview of everything SSOReady abstracts away for you.

At the end of the day, SAML is a protocol that lets one of your users tell you (“assert”) their email address using a payload (an “assertion”) that is self-contained. When you get a SAML payload, you can securely know:

  1. Which of your corporate customers sent you the payload,
  2. What email address, according to that corporate customer, this user has
  3. That the corporate customer wants you to log this user in right away

The tricky part about SAML is that you need to watch out for:

  1. Forged SAML assertions, wherein an attacker pretends to be one of your corporate customers
  2. Malicious or misconfigured corporate customers sending assertions about other company’s employees, e.g. EvilCorp (evilcorp.com) telling you to log someone in as the CEO of AcmeCorp (ceo@acmecorp.com).

If you use SSOReady, these issues are both automatically covered by you. Otherwise, you’ll typically need to implement (2) yourself, and you may want to audit your SAML dependency to make sure they adequately handle (1). Sadly, securely authenticating SAML is tricky, and many libraries don’t do it right.

The SAML Flow

There are three actors involved in a SAML flow:

  1. You are the service provider (“SP”). The service provider is software product being logged into via SAML.

  2. Your customer’s Okta/Entra/Google/etc is the identity provider (“IDP”). The identity provider is responsible for knowing whether a user is a real employee that wants to log into a product, and for telling service providers about that information using SAML.

  3. The user is mostly just along for the ride. In SAML, the SP and the IDP will redirect the user to each other. The user’s browser is responsible for carrying messages back and forth between the SP and IDP.

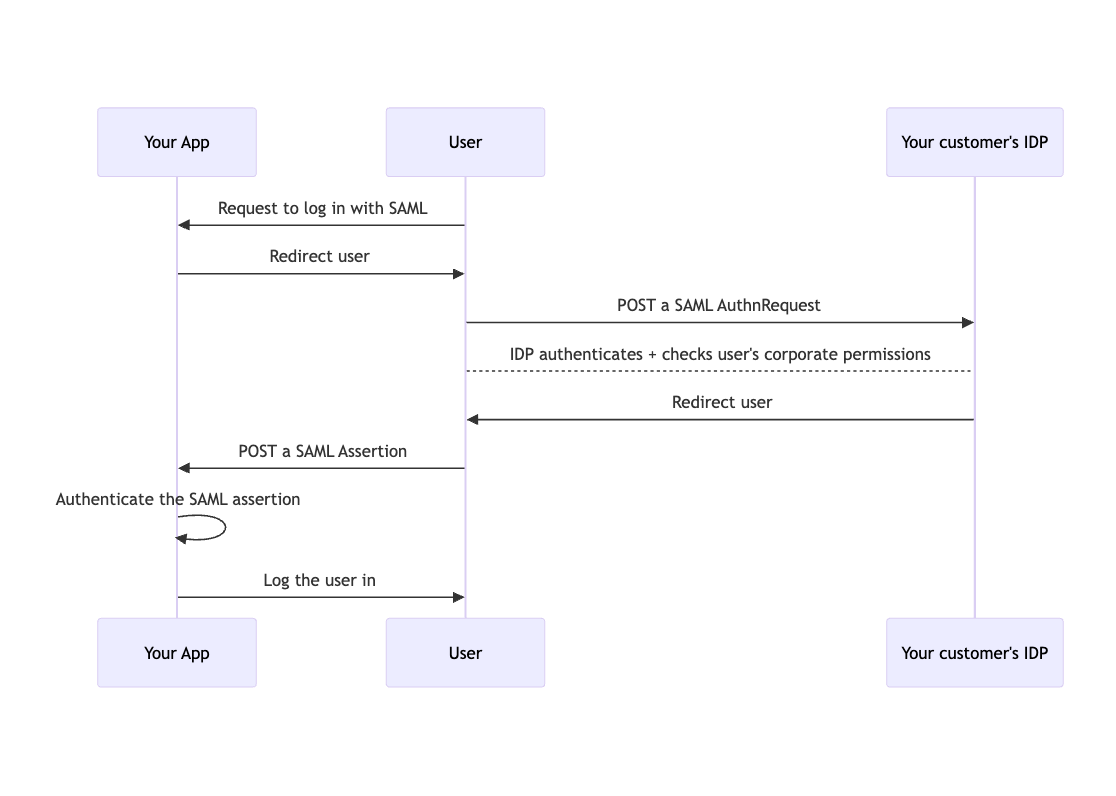

A sequence diagram of a successful SAML login flow.

Logging in via SAML has five high-level steps:

  1. You and your customer agree, offline, on some settings about how you’re going to do SAML.
  2. When it’s time to log in via SAML, you have the user POST a SAML AuthnRequest to your customer’s identity provider. This is called “initiating” a SAML login.
  3. Your customer’s identity provider handles making sure the user really has valid corporate credentials. This step is entirely outside your app’s control.
  4. The identity provider has the user POST a SAML Assertion to your HTTP server.
  5. You authenticate that the assertion is legitimate, and then log the user into your product.

If you’re familiar with OAuth, this flow might sound familiar. The biggest difference between SAML and OAuth is how you verify the user after they get redirected back to your application.

In OAuth, your backend server typically takes a code from the user, and asks the identity provider if this code is legitimate, and what the underlying user’s details are if it is.

In SAML, your backend server never talks directly to the identity provider. You have to look at the assertion and use public-key cryptography to tell if the identity provider cryptographically signed the message.

Step (1) is important conceptually, but doesn’t require any code. That’s covered in the next section: SAML Configuration. Steps (2) and (5) are the ones you have to write code for. They’re covered in Initiating a SAML Login and Handling a SAML Assertion.

SP- vs IDP-initiated SAML flows

The discussion above illustrates the “SP-initiated” SAML flow, where your application (the SP) decides to kick off the SAML flow.

SAML also supports “IDP-initiated” flows, where the IDP kicks off the SAML flow, and just directly sends the user to your ACS URL with an assertion.

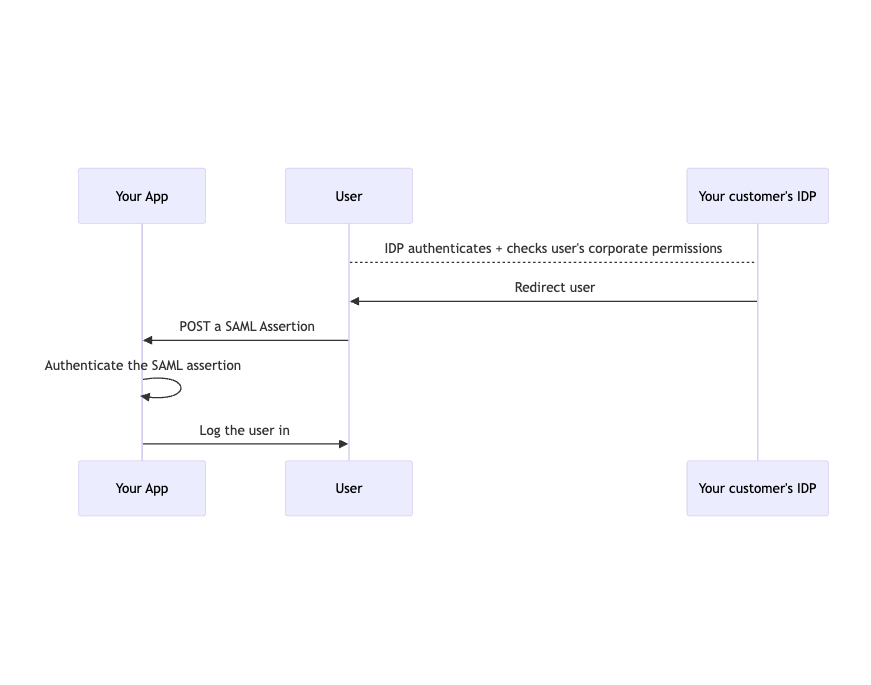

A sequence diagram of a successful IDP-initiated flow.

The only difference between an SP- and an IDP-initiated flow is that IDP-initiated flows won’t require you to initiate them, and as a result don’t have a RelayState. Both are widely used in practice. When you use SSOReady, you get both SP- and IDP-initiated SAML support automatically.

SAML Configuration

For each of your customers, you will have five settings associated with the SAML connection you have with them. These settings are:

  • An Assertion Consumer Service (“ACS”) URL. You assign this value. It’s a URL where you run an HTTP endpoint that’s ready to handle SAML assertions. When the identity provider redirects the user back to your application, they’ll send the user to the ACS URL.

  • An SP Entity ID. You assign this value, and it must be unique for every customer. It’s a generic string, but conventionally it’s formatted as a URL. The identity provider will include this SP Entity ID in the assertions it sends you, and you’ll use it to ensure the assertion was meant for you and not some other application.

  • An IDP Redirect URL. The IDP assigns this value. When you initiate a SAML login, this is the URL you redirect the user to.

  • An IDP Entity ID. The IDP assigns this value. It’s a generic string, but conventionally it’s formatted as a URL. When you initiate a SAML login, you include this value so the IDP knows which application is starting the login. The IDP will include this IDP Entity ID in the assertions it sends you, and you’ll use it to make sure the assertion is coming from the right identity provider.

  • An IDP Certificate. The IDP assigns this value. The IDP will use this certificate to cryptographically sign the assertions it sends you. You will use this certificate to authenticate that the identity provider really generated the assertion, and that it wasn’t forged or tampered with.

Once you have all of these settings in place, you can begin doing SAML logins.

Initiating a SAML Login

Initiating a SAML login concretely consists of having your user’s web browser send a POST request with a payload that looks like this:

AuthnRequest.xml
1<AuthnRequest xmlns="urn:oasis:names:tc:SAML:2.0:protocol" Version="2.0" IssueInstant="2024-09-23T22:41:38.243Z">
2    <Issuer xmlns="urn:oasis:names:tc:SAML:2.0:assertion">
3        https://auth.ssoready.com/v1/saml/saml_conn_5jvy8l0lgia5al1a45s9lo977
4    </Issuer>
5</AuthnRequest>

The Issuer needs to be equal to the SP Entity ID.

That POST request needs to be pointed at the IDP Redirect URL. The POST request needs to be a standard HTTP form, with the AuthnRequest.xml being base64-encoded and set as a form field called SAMLRequest.

You can’t use a normal HTTP redirect to have your user POST a form to another URL. The typical workaround is to render your user a form that self-submits using JavaScript:

Self-Submitting SAML Initiation Form
1<html>
2	<body>
3		<form method="POST" action="{{ IDP_REDIRECT_URL }}">
4			<input type="hidden" name="SAMLRequest" value="{{ SAML_AUTHN_REQUEST_BASE64_ENCODED }}"></input>
5		</form>
6		<script>
7			document.forms[0].submit();
8		</script>
9	</body>
10</html>

Including a RelayState

When initiating a SAML login, you can optionally include a RelayState parameter. You include this data as an additional parameter in the POST request:

Self-Submitting SAML Initiation Form with a RelayState
1<html>
2	<body>
3		<form method="POST" action="{{ IDP_REDIRECT_URL }}">
4			<input type="hidden" name="SAMLRequest" value="{{ SAML_AUTHN_REQUEST_BASE64_ENCODED }}"></input>
5			<input type="hidden" name="RelayState" value="{{ RELAY_STATE }}"></input>
6		</form>
7		<script>
8			document.forms[0].submit();
9		</script>
10	</body>
11</html>

Whatever you put in RelayState will be echoed back to you when you handle the SAML assertion. The HTTP POST you receive will contain, alongside the usual SAMLResponse entry, a RelayState entry.

The typical use-case for RelayState is to keep track of what page your user was on before forced them to log in with SAML. Then, once they’re done logging in with SAML, you redirect the user back to the page they were previously on.

You can’t trust that the RelayState you get back from an identity provider is the same as the one you chose when initiating the SAML login. An attacker can always send you a request with their own RelayState instead.

The most common security risk associated with RelayState is when you store a URL in that RelayState, but don’t authenticate its legitimacy. If the RelayState is allowed to redirect to a URL outside of your web application, then you have an open redirect vulnerability.

The safest solution is to cryptographically sign the RelayState value you include in your request using a secret key. When you use SSOReady, every RelayState is cryptographically authenticated; you do not need to worry about the state parameter being tampered with.

Handling a SAML Assertion

After you initiate a SAML login, the user is now on the identity provider’s website. The user then identifies themselves to the identity provider. Exactly how this works is outside of your control.

Typically, an identity provider will ask for a user’s password, and then may do multi-factor authentication checks. The point of SAML is that your customer’s IT admin decides on their corporate security policy, and their identity provider implements the logic. Your application doesn’t need to worry about it.

If the identity provider decides to not proceed — maybe the user is fired, or maybe hasn’t been internally authorized to use your application (e.g. your customer only wants engineers using your app, but the employee works in sales), then from your perspective, nothing happens. You’ll never hear back from the login attempt. SAML doesn’t have a “login attempt failed” mechanism.

But if the login succeeds, then your user’s web browser will be redirected back to your SAML ACS URL. The user will POST you a standard set of HTML form data. That form data will contain up to two values:

The job of “handling a SAML login” consists of three steps:

  1. Authenticating the legitimacy of the SAML payload
  2. Deciding whether you want to honor the SAML request
  3. Logging the user in

To do any of this, you first need to parse the SAML assertion, and make sense of its contents.

Give each customer a different ACS URL. That way, you can uniquely determine the appropriate IDP Certificate to use to authenticate the SAML payload.

The typical way to do this is to give every customer a different unique ID, and then include that ID in your ACS URL pattern:

POST /saml/:CUSTOMER_ID/acs

SSOReady uses the SAML Connection ID to do this. Every SAML connection ACS URL is unique.

Anatomy of a SAML assertion

The previous section discusses how your ACS URL will receive an HTML form with a SAMLResponse. Here’s a real example of such a SAMLResponse, base64-decoded, that came from Okta:

assertion.xml
1<?xml version="1.0" encoding="UTF-8"?><saml2p:Response Destination="https://auth.ssoready.com/v1/saml/saml_conn_bttep2j98bp0a30kas2462aek/acs" ID="id23923151776201191671508486" InResponseTo="saml_flow_0esp5wie0qgf848tf2yk8y5ex" IssueInstant="2024-07-19T20:54:07.107Z" Version="2.0" xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol"><saml2:Issuer Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">http://www.okta.com/exkig8gdo63cjI4OD5d7</saml2:Issuer><ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#"><ds:SignedInfo><ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/><ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/><ds:Reference URI="#id23923151776201191671508486"><ds:Transforms><ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/><ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/></ds:Transforms><ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/><ds:DigestValue>LG8xAT5bB2FL8o080efFIvlxSgxo+XbHe7jpD0Zhboo=</ds:DigestValue></ds:Reference></ds:SignedInfo><ds:SignatureValue>Pywv2l94wmFtmPgmUKSF7Q4gPPQbrWXTejp2FDHbm5g5NGBouUrYPKGcSfrysG/TUaUZevLiFc8VdkqUcThz+bPFgyt/ePomTJ1e2DfvAptK3wHjXYF88lZwk+p3JtJNohjfiq8wqEauSvM1jPpRfML3k5vOZS/diEzvrzaiB2noyupFZcCbgxSrdAdeVC6sjsUFu96FgjvHXwR41BCZftwrAanld7VZJ4P1GI30tJ6vwLh6H9ZvWx8MQ1vgMZuT2IDXifykeCLoo2GKqXyARIJGbzHzLWgRHBZqeDNskZWLg9HWjJy8eWpeye6OLs/7FuEj/GQGd/v8hMGoCL2U0A==</ds:SignatureValue><ds:KeyInfo><ds:X509Data><ds:X509Certificate>MIIDqDCCApCgAwIBAgIGAZDMRerRMA0GCSqGSIb3DQEBCwUAMIGUMQswCQYDVQQGEwJVUzETMBEG
2A1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5jaXNjbzENMAsGA1UECgwET2t0YTEU
3MBIGA1UECwwLU1NPUHJvdmlkZXIxFTATBgNVBAMMDGRldi05MjI1NDYzMjEcMBoGCSqGSIb3DQEJ
4ARYNaW5mb0Bva3RhLmNvbTAeFw0yNDA3MTkxODMzMTJaFw0zNDA3MTkxODM0MTJaMIGUMQswCQYD
5VQQGEwJVUzETMBEGA1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5jaXNjbzENMAsG
6A1UECgwET2t0YTEUMBIGA1UECwwLU1NPUHJvdmlkZXIxFTATBgNVBAMMDGRldi05MjI1NDYzMjEc
7MBoGCSqGSIb3DQEJARYNaW5mb0Bva3RhLmNvbTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoC
8ggEBALnkZbxmKDN9vSl7vwR1GgHXRLCQmvItOM8mbF19EUlx12tXzmA1wmafxZBo8+Zr7v4N9K+m
9MPWlpNr9MKO0wUkrsv9NzuQeRXowHVsiQ6O2Vaxsb1o9kxjpR/Cego/sT2Cw2A8sACeQhWoQoe1h
10jHOzIfvKf2OBpQ/BaelRCqZbYE9doZc1ufEp9xz6nSFRwJbF37pPo89qGeFPrYbsJkydysOM8SKO
11On55UI8dv0iI0msQvBegPa1Bvauex0/UcIq6o6N9wc03pq26OulcXC5rKuUeNTnmA7mX04wOC+a2
12jBe64W3aEGDCqk+ulw5hv8zsBAuD4vYsuRYkTCVtOgUCAwEAATANBgkqhkiG9w0BAQsFAAOCAQEA
13V+Mp98LuveJp4xFsC+6kv0f6w9HXDb/2KbUWiqxsocuJ9E+YEJv3tNC7F9uivvgGNah3hJENlin0
14+5wZqY59cNYRhl227lLPJUS7XGNnlN0QG9ns0tgjgWB4e/yQbxoy+e9wzj+MKrurmkNEaZiymo+Y
15OiSQuxQVw/JiZgifjNMIYmxF/12sKfn/6VHfhBAxDaUWLWzPq410On7KlOEb6FwIudRAaIL1NE2y
16LckoOiWYbmZJt1A5d+2IwdGCoH6GIsu3Dp990YISiC1rCg4pFI4s3d+VEaVn1udKv3f/UMnNTOz0
17jn3ZKSxD7x5NuHm8zEcDnxTiSXxkSs9RpZqrUg==</ds:X509Certificate></ds:X509Data></ds:KeyInfo></ds:Signature><saml2p:Status xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol"><saml2p:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success"/></saml2p:Status><saml2:Assertion ID="id23923151778251751045676989" IssueInstant="2024-07-19T20:54:07.107Z" Version="2.0" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion"><saml2:Issuer Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">http://www.okta.com/exkig8gdo63cjI4OD5d7</saml2:Issuer><ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#"><ds:SignedInfo><ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/><ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/><ds:Reference URI="#id23923151778251751045676989"><ds:Transforms><ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/><ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/></ds:Transforms><ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/><ds:DigestValue>5dyl0RFX07wyxI7u6Gw8u/GnO198XDNyj72TJY0KqLc=</ds:DigestValue></ds:Reference></ds:SignedInfo><ds:SignatureValue>gEacn07XIGlNYhgL4FO5BvK2qeulGDgLfV6LXQoZV9shUbreHrK2C9sYCBECDrCJfFzsT8PLcbcK2DgEG34Zzl1RI893Qc+hMxvl/SQ/rli7EL4bE9t1tIYHLr5d88NKXqoixNcVwf1GYkDt8xw4NjS6i7cfnIgOnJ7TjdJVtLSMNjF+yOXbzEVG7oOE618eIb0GrVk21eEOhlHl+rGiaheyzJaaX3zKTISJjcS9195bhe1v4D8XMGVj4AJO73JLpMfs3v7QArgrhQNAlbCsysdlqUAIaZBEWJgjE/k2W38jzm728wFUsewHwbKt4k060CKQ5Y6/0Wexq/7PhEN78A==</ds:SignatureValue><ds:KeyInfo><ds:X509Data><ds:X509Certificate>MIIDqDCCApCgAwIBAgIGAZDMRerRMA0GCSqGSIb3DQEBCwUAMIGUMQswCQYDVQQGEwJVUzETMBEG
18A1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5jaXNjbzENMAsGA1UECgwET2t0YTEU
19MBIGA1UECwwLU1NPUHJvdmlkZXIxFTATBgNVBAMMDGRldi05MjI1NDYzMjEcMBoGCSqGSIb3DQEJ
20ARYNaW5mb0Bva3RhLmNvbTAeFw0yNDA3MTkxODMzMTJaFw0zNDA3MTkxODM0MTJaMIGUMQswCQYD
21VQQGEwJVUzETMBEGA1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5jaXNjbzENMAsG
22A1UECgwET2t0YTEUMBIGA1UECwwLU1NPUHJvdmlkZXIxFTATBgNVBAMMDGRldi05MjI1NDYzMjEc
23MBoGCSqGSIb3DQEJARYNaW5mb0Bva3RhLmNvbTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoC
24ggEBALnkZbxmKDN9vSl7vwR1GgHXRLCQmvItOM8mbF19EUlx12tXzmA1wmafxZBo8+Zr7v4N9K+m
25MPWlpNr9MKO0wUkrsv9NzuQeRXowHVsiQ6O2Vaxsb1o9kxjpR/Cego/sT2Cw2A8sACeQhWoQoe1h
26jHOzIfvKf2OBpQ/BaelRCqZbYE9doZc1ufEp9xz6nSFRwJbF37pPo89qGeFPrYbsJkydysOM8SKO
27On55UI8dv0iI0msQvBegPa1Bvauex0/UcIq6o6N9wc03pq26OulcXC5rKuUeNTnmA7mX04wOC+a2
28jBe64W3aEGDCqk+ulw5hv8zsBAuD4vYsuRYkTCVtOgUCAwEAATANBgkqhkiG9w0BAQsFAAOCAQEA
29V+Mp98LuveJp4xFsC+6kv0f6w9HXDb/2KbUWiqxsocuJ9E+YEJv3tNC7F9uivvgGNah3hJENlin0
30+5wZqY59cNYRhl227lLPJUS7XGNnlN0QG9ns0tgjgWB4e/yQbxoy+e9wzj+MKrurmkNEaZiymo+Y
31OiSQuxQVw/JiZgifjNMIYmxF/12sKfn/6VHfhBAxDaUWLWzPq410On7KlOEb6FwIudRAaIL1NE2y
32LckoOiWYbmZJt1A5d+2IwdGCoH6GIsu3Dp990YISiC1rCg4pFI4s3d+VEaVn1udKv3f/UMnNTOz0
33jn3ZKSxD7x5NuHm8zEcDnxTiSXxkSs9RpZqrUg==</ds:X509Certificate></ds:X509Data></ds:KeyInfo></ds:Signature><saml2:Subject xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion"><saml2:NameID Format="urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified">ulysse.carion@ssoready.com</saml2:NameID><saml2:SubjectConfirmation Method="urn:oasis:names:tc:SAML:2.0:cm:bearer"><saml2:SubjectConfirmationData InResponseTo="saml_flow_0esp5wie0qgf848tf2yk8y5ex" NotOnOrAfter="2024-07-19T20:59:07.108Z" Recipient="https://auth.ssoready.com/v1/saml/saml_conn_bttep2j98bp0a30kas2462aek/acs"/></saml2:SubjectConfirmation></saml2:Subject><saml2:Conditions NotBefore="2024-07-19T20:49:07.108Z" NotOnOrAfter="2024-07-19T20:59:07.108Z" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion"><saml2:AudienceRestriction><saml2:Audience>https://auth.ssoready.com/v1/saml/saml_conn_bttep2j98bp0a30kas2462aek</saml2:Audience></saml2:AudienceRestriction></saml2:Conditions><saml2:AuthnStatement AuthnInstant="2024-07-19T20:54:07.107Z" SessionIndex="saml_flow_0esp5wie0qgf848tf2yk8y5ex" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion"><saml2:AuthnContext><saml2:AuthnContextClassRef>urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport</saml2:AuthnContextClassRef></saml2:AuthnContext></saml2:AuthnStatement></saml2:Assertion></saml2p:Response>

When we later authenticate the SAML assertion, this is the payload we will be authenticating. Whitespace matters.

But for the purposes of human legibility, let’s look at it in a prettier form:

assertion.xml (Pretty-Indented)
1<?xml version="1.0" encoding="UTF-8"?>
2<saml2p:Response Destination="https://auth.ssoready.com/v1/saml/saml_conn_bttep2j98bp0a30kas2462aek/acs" ID="id23923151776201191671508486" InResponseTo="saml_flow_0esp5wie0qgf848tf2yk8y5ex" IssueInstant="2024-07-19T20:54:07.107Z" Version="2.0" xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol">
3    <saml2:Issuer Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
4        http://www.okta.com/exkig8gdo63cjI4OD5d7
5    </saml2:Issuer>
6    <ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
7        <ds:SignedInfo>
8            <ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
9            <ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/>
10            <ds:Reference URI="#id23923151776201191671508486">
11                <ds:Transforms>
12                    <ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
13                    <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
14                </ds:Transforms>
15                <ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/>
16                <ds:DigestValue>
17                    LG8xAT5bB2FL8o080efFIvlxSgxo+XbHe7jpD0Zhboo=
18                </ds:DigestValue>
19            </ds:Reference>
20        </ds:SignedInfo>
21        <ds:SignatureValue>
22            Pywv2l94wmFtmPgmUKSF7Q4gPPQbrWXTejp2FDHbm5g5NGBouUrYPKGcSfrysG/TUaUZevLiFc8VdkqUcThz+bPFgyt/ePomTJ1e2DfvAptK3wHjXYF88lZwk+p3JtJNohjfiq8wqEauSvM1jPpRfML3k5vOZS/diEzvrzaiB2noyupFZcCbgxSrdAdeVC6sjsUFu96FgjvHXwR41BCZftwrAanld7VZJ4P1GI30tJ6vwLh6H9ZvWx8MQ1vgMZuT2IDXifykeCLoo2GKqXyARIJGbzHzLWgRHBZqeDNskZWLg9HWjJy8eWpeye6OLs/7FuEj/GQGd/v8hMGoCL2U0A==
23        </ds:SignatureValue>
24        <ds:KeyInfo>
25            <ds:X509Data>
26                <ds:X509Certificate>
27                    MIIDqDCCApCgAwIBAgIGAZDMRerRMA0GCSqGSIb3DQEBCwUAMIGUMQswCQYDVQQGEwJVUzETMBEG
28                    A1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5jaXNjbzENMAsGA1UECgwET2t0YTEU
29                    MBIGA1UECwwLU1NPUHJvdmlkZXIxFTATBgNVBAMMDGRldi05MjI1NDYzMjEcMBoGCSqGSIb3DQEJ
30                    ARYNaW5mb0Bva3RhLmNvbTAeFw0yNDA3MTkxODMzMTJaFw0zNDA3MTkxODM0MTJaMIGUMQswCQYD
31                    VQQGEwJVUzETMBEGA1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5jaXNjbzENMAsG
32                    A1UECgwET2t0YTEUMBIGA1UECwwLU1NPUHJvdmlkZXIxFTATBgNVBAMMDGRldi05MjI1NDYzMjEc
33                    MBoGCSqGSIb3DQEJARYNaW5mb0Bva3RhLmNvbTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoC
34                    ggEBALnkZbxmKDN9vSl7vwR1GgHXRLCQmvItOM8mbF19EUlx12tXzmA1wmafxZBo8+Zr7v4N9K+m
35                    MPWlpNr9MKO0wUkrsv9NzuQeRXowHVsiQ6O2Vaxsb1o9kxjpR/Cego/sT2Cw2A8sACeQhWoQoe1h
36                    jHOzIfvKf2OBpQ/BaelRCqZbYE9doZc1ufEp9xz6nSFRwJbF37pPo89qGeFPrYbsJkydysOM8SKO
37                    On55UI8dv0iI0msQvBegPa1Bvauex0/UcIq6o6N9wc03pq26OulcXC5rKuUeNTnmA7mX04wOC+a2
38                    jBe64W3aEGDCqk+ulw5hv8zsBAuD4vYsuRYkTCVtOgUCAwEAATANBgkqhkiG9w0BAQsFAAOCAQEA
39                    V+Mp98LuveJp4xFsC+6kv0f6w9HXDb/2KbUWiqxsocuJ9E+YEJv3tNC7F9uivvgGNah3hJENlin0
40                    +5wZqY59cNYRhl227lLPJUS7XGNnlN0QG9ns0tgjgWB4e/yQbxoy+e9wzj+MKrurmkNEaZiymo+Y
41                    OiSQuxQVw/JiZgifjNMIYmxF/12sKfn/6VHfhBAxDaUWLWzPq410On7KlOEb6FwIudRAaIL1NE2y
42                    LckoOiWYbmZJt1A5d+2IwdGCoH6GIsu3Dp990YISiC1rCg4pFI4s3d+VEaVn1udKv3f/UMnNTOz0
43                    jn3ZKSxD7x5NuHm8zEcDnxTiSXxkSs9RpZqrUg==
44                </ds:X509Certificate>
45            </ds:X509Data>
46        </ds:KeyInfo>
47    </ds:Signature>
48    <saml2p:Status xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol">
49        <saml2p:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success"/>
50    </saml2p:Status>
51    <saml2:Assertion ID="id23923151778251751045676989" IssueInstant="2024-07-19T20:54:07.107Z" Version="2.0" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
52        <saml2:Issuer Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
53            http://www.okta.com/exkig8gdo63cjI4OD5d7
54        </saml2:Issuer>
55        <ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
56            <ds:SignedInfo>
57                <ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
58                <ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/>
59                <ds:Reference URI="#id23923151778251751045676989">
60                    <ds:Transforms>
61                        <ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
62                        <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
63                    </ds:Transforms>
64                    <ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/>
65                    <ds:DigestValue>
66                        5dyl0RFX07wyxI7u6Gw8u/GnO198XDNyj72TJY0KqLc=
67                    </ds:DigestValue>
68                </ds:Reference>
69            </ds:SignedInfo>
70            <ds:SignatureValue>
71                gEacn07XIGlNYhgL4FO5BvK2qeulGDgLfV6LXQoZV9shUbreHrK2C9sYCBECDrCJfFzsT8PLcbcK2DgEG34Zzl1RI893Qc+hMxvl/SQ/rli7EL4bE9t1tIYHLr5d88NKXqoixNcVwf1GYkDt8xw4NjS6i7cfnIgOnJ7TjdJVtLSMNjF+yOXbzEVG7oOE618eIb0GrVk21eEOhlHl+rGiaheyzJaaX3zKTISJjcS9195bhe1v4D8XMGVj4AJO73JLpMfs3v7QArgrhQNAlbCsysdlqUAIaZBEWJgjE/k2W38jzm728wFUsewHwbKt4k060CKQ5Y6/0Wexq/7PhEN78A==
72            </ds:SignatureValue>
73            <ds:KeyInfo>
74                <ds:X509Data>
75                    <ds:X509Certificate>
76                        MIIDqDCCApCgAwIBAgIGAZDMRerRMA0GCSqGSIb3DQEBCwUAMIGUMQswCQYDVQQGEwJVUzETMBEG
77                        A1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5jaXNjbzENMAsGA1UECgwET2t0YTEU
78                        MBIGA1UECwwLU1NPUHJvdmlkZXIxFTATBgNVBAMMDGRldi05MjI1NDYzMjEcMBoGCSqGSIb3DQEJ
79                        ARYNaW5mb0Bva3RhLmNvbTAeFw0yNDA3MTkxODMzMTJaFw0zNDA3MTkxODM0MTJaMIGUMQswCQYD
80                        VQQGEwJVUzETMBEGA1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5jaXNjbzENMAsG
81                        A1UECgwET2t0YTEUMBIGA1UECwwLU1NPUHJvdmlkZXIxFTATBgNVBAMMDGRldi05MjI1NDYzMjEc
82                        MBoGCSqGSIb3DQEJARYNaW5mb0Bva3RhLmNvbTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoC
83                        ggEBALnkZbxmKDN9vSl7vwR1GgHXRLCQmvItOM8mbF19EUlx12tXzmA1wmafxZBo8+Zr7v4N9K+m
84                        MPWlpNr9MKO0wUkrsv9NzuQeRXowHVsiQ6O2Vaxsb1o9kxjpR/Cego/sT2Cw2A8sACeQhWoQoe1h
85                        jHOzIfvKf2OBpQ/BaelRCqZbYE9doZc1ufEp9xz6nSFRwJbF37pPo89qGeFPrYbsJkydysOM8SKO
86                        On55UI8dv0iI0msQvBegPa1Bvauex0/UcIq6o6N9wc03pq26OulcXC5rKuUeNTnmA7mX04wOC+a2
87                        jBe64W3aEGDCqk+ulw5hv8zsBAuD4vYsuRYkTCVtOgUCAwEAATANBgkqhkiG9w0BAQsFAAOCAQEA
88                        V+Mp98LuveJp4xFsC+6kv0f6w9HXDb/2KbUWiqxsocuJ9E+YEJv3tNC7F9uivvgGNah3hJENlin0
89                        +5wZqY59cNYRhl227lLPJUS7XGNnlN0QG9ns0tgjgWB4e/yQbxoy+e9wzj+MKrurmkNEaZiymo+Y
90                        OiSQuxQVw/JiZgifjNMIYmxF/12sKfn/6VHfhBAxDaUWLWzPq410On7KlOEb6FwIudRAaIL1NE2y
91                        LckoOiWYbmZJt1A5d+2IwdGCoH6GIsu3Dp990YISiC1rCg4pFI4s3d+VEaVn1udKv3f/UMnNTOz0
92                        jn3ZKSxD7x5NuHm8zEcDnxTiSXxkSs9RpZqrUg==
93                    </ds:X509Certificate>
94                </ds:X509Data>
95            </ds:KeyInfo>
96        </ds:Signature>
97        <saml2:Subject xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
98            <saml2:NameID Format="urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified">
99                ulysse.carion@ssoready.com
100            </saml2:NameID>
101            <saml2:SubjectConfirmation Method="urn:oasis:names:tc:SAML:2.0:cm:bearer">
102                <saml2:SubjectConfirmationData InResponseTo="saml_flow_0esp5wie0qgf848tf2yk8y5ex" NotOnOrAfter="2024-07-19T20:59:07.108Z" Recipient="https://auth.ssoready.com/v1/saml/saml_conn_bttep2j98bp0a30kas2462aek/acs"/>
103            </saml2:SubjectConfirmation>
104        </saml2:Subject>
105        <saml2:Conditions NotBefore="2024-07-19T20:49:07.108Z" NotOnOrAfter="2024-07-19T20:59:07.108Z" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
106            <saml2:AudienceRestriction>
107                <saml2:Audience>
108                    https://auth.ssoready.com/v1/saml/saml_conn_bttep2j98bp0a30kas2462aek
109                </saml2:Audience>
110            </saml2:AudienceRestriction>
111        </saml2:Conditions>
112        <saml2:AuthnStatement AuthnInstant="2024-07-19T20:54:07.107Z" SessionIndex="saml_flow_0esp5wie0qgf848tf2yk8y5ex" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
113            <saml2:AuthnContext>
114                <saml2:AuthnContextClassRef>
115                    urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport
116                </saml2:AuthnContextClassRef>
117            </saml2:AuthnContext>
118        </saml2:AuthnStatement>
119    </saml2:Assertion>
120</saml2p:Response>

The most important pieces of information are:

  • The assertion issuer lives in <saml2:Issuer>

    1<saml2:Issuer Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
    2    http://www.okta.com/exkig8gdo63cjI4OD5d7
    3</saml2:Issuer>

  • The assertion signature lives in <ds:Signature> (specifically the one inside <saml2:Assertion>). The most important parts are the

    • Canonicalization Algorithm on <ds:CanonicalizationMethod>
    • Signature Algorithm on <ds:SignatureMethod>
    • Digest Algorithm on <ds:DigestMethod>
    • The digest hash in <ds:DigestValue>
    • The signature value in <ds:SignatureValue>
    1<ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
    2    <ds:SignedInfo>
    3        <ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
    4        <ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/>
    5        <ds:Reference URI="#id23923151778251751045676989">
    6            <ds:Transforms>
    7                <ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
    8                <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
    9            </ds:Transforms>
    10            <ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/>
    11            <ds:DigestValue>
    12                5dyl0RFX07wyxI7u6Gw8u/GnO198XDNyj72TJY0KqLc=
    13            </ds:DigestValue>
    14        </ds:Reference>
    15    </ds:SignedInfo>
    16    <ds:SignatureValue>
    17        gEacn07XIGlNYhgL4FO5BvK2qeulGDgLfV6LXQoZV9shUbreHrK2C9sYCBECDrCJfFzsT8PLcbcK2DgEG34Zzl1RI893Qc+hMxvl/SQ/rli7EL4bE9t1tIYHLr5d88NKXqoixNcVwf1GYkDt8xw4NjS6i7cfnIgOnJ7TjdJVtLSMNjF+yOXbzEVG7oOE618eIb0GrVk21eEOhlHl+rGiaheyzJaaX3zKTISJjcS9195bhe1v4D8XMGVj4AJO73JLpMfs3v7QArgrhQNAlbCsysdlqUAIaZBEWJgjE/k2W38jzm728wFUsewHwbKt4k060CKQ5Y6/0Wexq/7PhEN78A==
    18    </ds:SignatureValue>
    19    <!-- ds:KeyInfo omitted because it's really long -->
    20</ds:Signature>

  • The assertion subject ID lives in <saml2:NameID>

    1<saml2:NameID Format="urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified">
    2    ulysse.carion@ssoready.com
    3</saml2:NameID>

  • The assertion’s validity window is specified by the NotBefore and NotOnOrAfter on <saml2:Conditions>

    1<saml2:Conditions NotBefore="2024-07-19T20:49:07.108Z" NotOnOrAfter="2024-07-19T20:59:07.108Z" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
    2    <saml2:AudienceRestriction>
    3        <saml2:Audience>
    4            https://auth.ssoready.com/v1/saml/saml_conn_bttep2j98bp0a30kas2462aek
    5        </saml2:Audience>
    6    </saml2:AudienceRestriction>
    7</saml2:Conditions>

  • The assertion’s audience lives in <saml2:Audience>

    1<saml2:AudienceRestriction>
    2    <saml2:Audience>
    3        https://auth.ssoready.com/v1/saml/saml_conn_bttep2j98bp0a30kas2462aek
    4    </saml2:Audience>
    5</saml2:AudienceRestriction>

Validating the assertion signature is what cryptographically authenticating a SAML assertion is all about. Validating all the other pieces of information — the issuer, the subject ID, the validity window, the audience — happens when you decide whether to honor the login.

Cryptographically authenticating a SAML assertion

Cryptographically authenticating SAML assertions is the most perilous part of implementing SAML. This is the step where the most security-critical mistakes happen.

If you choose to implement this yourself, you’re going to at minimum have to handle untrusted XML payloads. Make sure your code (and its dependencies) aren’t susceptible to generic XML vulnerabilities like billion laughs and XML entity expansion attacks.

From there, you’ll need to implement XML Signature (aka XMLDsig). This section will call out many of the more common vulnerabilities with XML Signature implementations.

Before you can process a SAML assertion, you need to verify that it was really sent by your customer’s identity provider. You must do this, because the SAML assertion comes from an untrusted source: a user’s browser. How do you know the user’s request contains a SAML assertion that was really produced by your customer’s identity provider?

Make sure your SAML implementation can’t be tricked into skipping the process of cryptographically authenticating SAML assertions.

Many SAML implementations can have such checks trivially bypassed by, for example, just removing the <ds:Signature /> elements in an assertion. This attack works most often when code contains logic that merely asks “are there any invalid signatures in this XML payload?“. A SAML assertion without any signatures trivially passes such a check.

SSOReady always requires that SAML assertions be signed. This functionality cannot be disabled.

SAML implements cryptographic authentication using XML Signature, which is a very complicated standard that tries to anticipate dozens of different ways to sign XML messages. Thankfully, the SAML specification does restrict what parts of XML Signature can be used in a SAML assertion:

5.4 XML Signature Profile

[…] This section details constraints on these facilities so that SAML processors do not have to deal with the full generality of XML Signature processing.

The restrictions SAML imposes on XML Signature are:

  • XML Signature supports many different ways for where to put a signature relative to what it signs. SAML assertions are signed using enveloped signatures. This means the <ds:Signature /> elements in a SAML assertion are placed inside the assertion.

The same section of the specification reads:

SAML processors SHOULD support the use of RSA signing and verification for public key operations in accordance with the algorithm identified by http://www.w3.org/2000/09/xmldsig#rsa-sha1.

Do not implement this requirement. Require http://www.w3.org/2001/04/xmldsig-more#rsa-sha256 instead.

SHA1 was still considered secure when SAML 2.0 was drafted, but it is not considered secure today. In practice, all modern identity providers support RSA-SHA256 at minimum instead.

  • XML Signature supports many different ways for a signature to indicate what it’s signing. SAML stipulates that every assertion must have an ID="..." attribute, and that the signature points at it using URI="#...".

  • XML Signature supports many canonicalization algorithms (more on these later). SAML assertions always use Exclusive XML Canonicalization.

SAML authenticates data in a three-step process: a subset of the SAML assertion gets canonicalized and then digested (i.e. hashed). The hash is then signed using RSA.

More concretely, the steps are to:

  1. Extract out the data that we want to canonicalize
  2. Canonicalize that data
  3. Verify the digest (i.e. hash) of the canonicalized data
  4. Extract out the data we want to sign
  5. Verify the RSA signature of that data

Extracting the SAML assertion to authenticate

The data to authenticate is the <saml2:Assertion> inside the overall <saml2p:Response> payload, but with the <ds:Signature> element removed. However, you may need to copy over namespace declarations from the top-level <saml2p:Response>; for instance, the identity provider Keycloak shapes its assertions like so:

1<samlp:Response xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol" xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion">
2    <saml:Assertion>
3        <!-- ... -->
4    </saml:Assertion>
5</samlp:Response>

You don’t sign <saml:Assertion>...</saml:Assertion>. You have to copy over all namespaces “above” the XML assertion that are “visibly utilized”, including in this case the xmlns:saml declaration:

1<saml:Assertion xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion">
2    <!-- ... -->
3</saml:Assertion>

With this data in hand, you are ready to canonicalize the assertion.

Canonicalizing a SAML assertion

From there, you have to carry out the Exclusive XML Canonicalization algorithm on the assertion. This algorithm is hairy in the details, but at a high level it is there to make operations like “remove the <Signature> element from the <Assertion>” be something that two parties can carry out, and still end up with exactly the same set of bytes. Canonicalization (“c14n”) is an XML-to-bytes algorithm.

Many XML libraries have abstractions that make it impossible to implement XML canonicalization. You may need to write your own XML parser.

You need to use a library that exposes where XML namespaces are declared (i.e. xmlns: attributes), and which lets you see what namespace prefixes (i.e. the foo in foo:bar, not just what foo resolves to) that elements and attributes use. These details are often abstracted away, because they don’t affect message semantics.

Exclusive XML Canonicalization builds on top of Canonical XML, aka “XML Canonicalization” or just “XML c14n”.

XML Canonicalization is rather involved, but the basic idea is to make details that don’t affect message semantics always resolve to the same thing:

  • Empty elements (<foo />) are converted to start/end pairs (<foo></foo>)
  • Element attributes are sorted by resolved namespace URI, ties broken alphabetically. Namespace declarations come first.
  • Whitespace within elements is removed, but whitespace in text nodes is preserved

The XML canonicalization spec is written to require support for entity expansion, for instance requiring that this document:

Input.xml (from the XML Canonicalization specification)
1<!DOCTYPE doc [
2<!ATTLIST doc attrExtEnt ENTITY #IMPLIED>
3<!ENTITY ent1 "Hello">
4<!ENTITY ent2 SYSTEM "world.txt">
5<!ENTITY entExt SYSTEM "earth.gif" NDATA gif>
6<!NOTATION gif SYSTEM "viewgif.exe">
7]>
8<doc attrExtEnt="entExt">
9    &ent1;, &ent2;!
10</doc>
11
12<!-- Let world.txt contain "world" (excluding the quotes) -->

Canonicalize to:

Output.xml
1<doc attrExtEnt="entExt">
2    Hello, world!
3</doc>

Do not honor this requirement. You will be vulnerable to XML Entity Expansion (“XXE”) attacks. The specification here is simply inappropriate for systems that handle untrusted user input, such as SAML. In the real world, no SAML systems rely on entity expansion. This part of the spec is irrelevant and actively insecure in practice.

What makes XML Exclusive Canonicalization different from ordinary XML Canonicalization is in how XML namespaces are handled. In particular, XML Canonicalization stipulates that you only include XML namespaces that are visibly utilized.

In other words, you take every namespace declaration (e.g. a xmlns:foo="bar" attribute), and you scan through everything “inside” that element. If they use the declared namespace prefix (e.g. <foo /> or foo:lorem="ipsum"), then you keep the namespace declaration. Otherwise, you omit it from the output. If a namespace declaration is “shadowed” (i.e. redeclared by a child element), then you need to make sure it’s not the child declaration that’s being used. If two prefixes resolve to the same URI (e.g. <lorem xmlns:a="xxx" xmlns:b="xxx">), you need to track the prefixes independently.

XML Exclusive Canonicalization permits for an InclusiveNamespaces PrefixList parameter. You need to support this. In SAML, that parameter gets passed in a InclusiveNamespaces attribute under the ds:Transform element for canonicalization in the signature:

1<ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#">
2    <ec:InclusiveNamespaces PrefixList="xs" xmlns:ec="http://www.w3.org/2001/10/xml-exc-c14n#"/>
3</ds:Transform>

What this element concretely does is say that any declaration of xs (e.g. xmlns:xs="...") is always treated as being visibly used.

The XML Exclusive Canonicalization spec has a bunch of discussion about special-casing xmlns="". You don’t need to worry about this; it’s written to make the spec easier to implement using XPath, which has a hard time “seeing” xmlns="" declarations. But such declarations are never used in practice in SAML.

You do, however, need to handle checking whether default (i.e. unprefixed) namespace declarations are visibly used. Many identity providers send assertions that declare default namespaces. Not all of these declarations are always visibly used.

When you’re done with this step, you’ve converted the SAML payload into a precise sequence of bytes, representing a normalized (i.e. canonicalized) representation of the payload’s <Assertion> with the <Signature> removed. Now, we can move on to doing cryptography.

Verifying the digest of the canonicalized assertion

After converting the SAML assertion into a set of canonicalized bytes, SAML requires that those bytes be put through a digest — i.e. cryptographic hash — algorithm.

The SAML specification does not put constraints on what digest algorithm be used, but you can limit yourself to supporting SHA-256; it’s secure and widely supported by modern identity providers.

As with the prior warning regarding RSA-SHA1, we recommend against implementing SHA1. It is not generally considered secure today.

SHA1 is a legal digest algorithm for a SAML implementation to use, but its use has since been formally discouraged by later revisions of the XML Signature specification: https://www.w3.org/TR/xmldsig-core1/#sec-MessageDigests

In practice, all modern identity providers support SHA256 at minimum instead.

You will compare the SHA-256 sum of the canonicalized bytes against the <ds:DigestValue /> element of the signature. If your computed SHA-256 doesn’t equal the digest value in the assertion, then the message is invalid / inauthentic.

One quirk here is that <ds:DigestValue /> contains the base64-encoded bytes from SHA-256, not the more common hex encoding typically used for the output of SHA-256.

Do not stop here. All you have done to this point is make sure the Signature you’re looking at is meant for the assertion you want to process. You still do not know that the assertion was actually generated by the identity provider.

It is trivial for an attacker to generate a correct SHA-256 digest for an assertion. You have jumped through a hoop SAML introduces, but you have not yet done any meaningful cryptographic authentication.

Extracting the SignedInfo to sign

SAML relies on RSA to cryptographically sign (and authenticate) assertions. The SHA-256 digest of the assertion, which we verified in the previous section, is not what gets signed. Instead, an XML element containing the digest is signed.

SAML requires that the RSA-SHA256 signature be over the SignedInfo, an XML element that contains the digest:

SignedInfo (Pretty-Indented)
1<ds:SignedInfo>
2    <ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
3    <ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/>
4    <ds:Reference URI="#id23923151778251751045676989">
5        <ds:Transforms>
6            <ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
7            <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
8        </ds:Transforms>
9        <ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/>
10        <ds:DigestValue>
11            5dyl0RFX07wyxI7u6Gw8u/GnO198XDNyj72TJY0KqLc=
12        </ds:DigestValue>
13    </ds:Reference>
14</ds:SignedInfo>

To make matters a bit more complicated, this payload isn’t what gets signed; you need to copy over all XML namespaces that this SignedInfo payload visibly uses, so in this case we need to define xmlns:ds on the SignedInfo before signing:

SignedInfo with namespaces copied in (Pretty-Indented)
1<ds:SignedInfo xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
2    <ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
3    <ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/>
4    <ds:Reference URI="#id23923151778251751045676989">
5        <ds:Transforms>
6            <ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
7            <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
8        </ds:Transforms>
9        <ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/>
10        <ds:DigestValue>
11            5dyl0RFX07wyxI7u6Gw8u/GnO198XDNyj72TJY0KqLc=
12        </ds:DigestValue>
13    </ds:Reference>
14</ds:SignedInfo>

This is the data that you need to verify with RSA-SHA256.

Authenticating the SignedInfo

The correct signature is stored in the <SignatureValue> of the <Signature> element:

SignatureValue (Pretty-Indented)
1<ds:SignatureValue>
2    Pywv2l94wmFtmPgmUKSF7Q4gPPQbrWXTejp2FDHbm5g5NGBouUrYPKGcSfrysG/TUaUZevLiFc8VdkqUcThz+bPFgyt/ePomTJ1e2DfvAptK3wHjXYF88lZwk+p3JtJNohjfiq8wqEauSvM1jPpRfML3k5vOZS/diEzvrzaiB2noyupFZcCbgxSrdAdeVC6sjsUFu96FgjvHXwR41BCZftwrAanld7VZJ4P1GI30tJ6vwLh6H9ZvWx8MQ1vgMZuT2IDXifykeCLoo2GKqXyARIJGbzHzLWgRHBZqeDNskZWLg9HWjJy8eWpeye6OLs/7FuEj/GQGd/v8hMGoCL2U0A==
3</ds:SignatureValue>

As with the digest information, this SignatureValue contains base64 data. You verify that it is an RSA PKCS #1 v1.5 signature for the XML payload you extracted in the previous section.

Verifying an RSA signature requires an RSA public key. You must use the RSA public key inside the IDP’s X.509 certificate to verify the signature. Do not use any other key.

Every SAML assertion contains a KeyInfo element, which contains an X.509 certificate. Do not use this key. An attacker can trivially replace that KeyInfo with a key they control. From there, they can generate valid signatures easily.

Many open-source SAML libraries get this wrong. You should audit this. Any SAML library that doesn’t take an RSA public key as a required parameter to verify a SAML assertion is probably vulnerable.

To determine what the correct IDP certificate is, you must do so out-of-band. See the section on SAML configuration in this article. If you use SSOReady, you can have your customer securely upload their IDP certificate using a self-serve configuration UI without any work or coding on your part.

You can optionally check that the contents of that KeyInfo equal the one-and-only key that you trust. You can use that check to gracefully detect if your customer has rotated their IDP certificate without first giving you the new certificate.

If you use SSOReady, your customers will get such a graceful warning about incorrect certificates out of the box. This is just a convenience feature for your customer; SSOReady never trusts the KeyInfo on a user-provided assertion.

Once you have verified this signature (using the correct key), you have now established that your customer’s identity provider really generated this assertion. It is now your job to decide whether to honor this SAML login.

Deciding whether to honor a SAML login

Do not skip this step. Just because a SAML assertion was really generated by your customer’s identity provider doesn’t mean you should honor it.

An attacker could be performing a replay attack. You also need to guard against the possibility of a customer maliciously configuring their identity provider to send you assertions designed to log in as another one of your customers.

After authenticating a SAML login, you now need to take the authenticated payload (not the original, pre-canonicalization assertion) and carry out a few checks on the data.

Once you’ve authenticated the SAML assertion, you need to only work with the canonicalized payload from then on. The XML Signature specification puts it this way:

automated mechanism that trust the validity of a transformed document on the basis of a valid signature should operate over the data that was transformed (including canonicalization) and signed, not the original pre-transformed data

Concretely, the sort of vulnerability you need to worry about is that these two messages:

1<saml2:NameID Format="urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified">
2    abraham.lincoln@whitehouse.gov.evilcorp.com
3</saml2:NameID>
1<saml2:NameID Format="urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified">
2    abraham.lincoln@whitehouse.gov<!-- attacker-inserted comment >:) -->.evilcorp.com
3</saml2:NameID>

Both canonicalize to the same thing, and so have the same signature. So if your code does this:

1saml_payload = # ... input from the ACS URL
2validated_payload = canonicalize_and_validate(saml_payload)
3
4# watch out! you should work with validated_payload, not saml_payload
5email = saml_payload["NameID"].children[0].text

Then with the second payload (the one with the attacker-inserted comment), your code will be tricked into thinking the identity provider signed abraham.lincoln@whitehouse.gov. In both examples, validated_payload are equal, but in the second example, the pre-canonicalization saml_payload is represented as:

1{
2    "element": "saml2:NameId",
3    "children": [
4        { "text": "abraham.lincoln@whitehouse.gov" },
5        { "comment": " attacker-inserted comment >:) "},
6        { "text": ".evilattacker.com" },
7    ]
8}

The SAML assertion’s signature only testifies to the post-canonicalization payload, and in this case an attacker found a way to make the semantics of a payload be affected by something that goes away during canonicalization* (a comment). The fix is to work with the canonicalized payload.

If you use SSOReady, the code you write does not need to handle XML payloads at all. Internally, SSOReady implements controls against canonicalization-related attacks.

You should check that:

  • The assertion’s audience equals the SP Entity ID you assigned.

    1<saml2:AudienceRestriction>
    2    <saml2:Audience>
    3        https://auth.ssoready.com/v1/saml/saml_conn_bttep2j98bp0a30kas2462aek
    4    </saml2:Audience>
    5</saml2:AudienceRestriction>

    Verifying the assertion’s audience defends against replay attacks.

    An attacker may take a legitimate assertion meant for one application, and replay it to your application in order to do privilege escalation.

    For example, many universities use the same IDP for all professors and students. Many large organizations use the same IDP for executives and for temporary employees.

    The IDP might give out SAML assertions to anyone on staff to access the internal company documentation hub. What if an employee takes a SAML assertion meant for the documentation hub’s SP Entity ID, but sends it to your (much more sensitive) application instead?

    You might assume that checking the X.509 certificate on the assertion would make sure the payload is meant for you. In fact, many IDPs use the same certificate for every application. Shibboleth, in particular, is popular in higher education and is typically configured this way.

    SSOReady always verifies assertion audiences. This functionality cannot be disabled.

  • The assertion’s validity window is valid against the current time, i.e. hasn’t expired:

    1  <saml2:Conditions NotBefore="2024-07-19T20:49:07.108Z" NotOnOrAfter="2024-07-19T20:59:07.108Z" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
    2      <saml2:AudienceRestriction>
    3          <saml2:Audience>
    4              https://auth.ssoready.com/v1/saml/saml_conn_bttep2j98bp0a30kas2462aek
    5          </saml2:Audience>
    6      </saml2:AudienceRestriction>
    7  </saml2:Conditions>

    Verifying the assertion’s validity window defends against replay attacks.

    In the example above, Okta generated a SAML assertion that’s only valid for 10 minutes. The intention here is that if a victim’s SAML assertion were somehow leaked to an attacker, the attacker would have less than 10 minutes to carry out an attack. This doesn’t solve every problem, but it does greatly limit the impact of, for example, leaks of network logs or other historical data.

    Do not try to implement your own validity window logic on top of SAML assertions. That way, your customers can choose how tight they want to make their assertion expirations, depending on their security posture.

    SSOReady always verifies assertion expiration. This functionality cannot be disabled.

  • The assertion issuer equals the IDP Entity ID:

    1<saml2:Issuer Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
    2    http://www.okta.com/exkig8gdo63cjI4OD5d7
    3</saml2:Issuer>

    Compared to verifying the assertion’s audience, verifying the issuer is less critical.

    Authenticating the assertion’s signature using the IDP’s certificate is what does the heavy lifting of making sure the IDP really issued the assertion. Checking the issuer is more for helping to debug SAML misconfiguration.

    Some identity providers don’t use unique IDP entity IDs; JumpCloud defaults to setting the IDP Entity ID to JumpCloud for all applications.

    SSOReady always verifies assertion issuers. This functionality cannot be disabled.

  • You haven’t previously processed a SAML assertion with the same ID:

    1<saml2:Assertion ID="id23923151778251751045676989" ...>
    2  ...
    3</saml2:Assertion>

    Checking that every SAML assertion’s ID is distinct guards against replay attacks.

    A SAML assertion is, in essence, a bearer token. That bearer token has a limited validity window (which you verified previously in this section), but it also gets handled by many parties. There’s a risk that one of the parties accidentally leaks those assertions, and an attacker could replay a leaked assertion before the validity window expires.

    The SAML specification requires that every Assertion have an ID attribute, and that this ID have a “negligible probability” of collision. By ensuring that you never process two assertions with the same ID, you make replay attacks much more difficult for attackers — they must not only intercept the assertion, but send it to you faster than the victim. This is a very difficult attack to carry out in practice, because usually only milliseconds pass between an IDP’s issuance of an assertion and your customer presenting it to you.

    SSOReady always verifies assertion ID uniqueness. This functionality cannot be disabled.

Once you have done these checks, you have now established that:

  • The SAML assertion was really issued by your customer’s identity provider
  • The SAML assertion was really meant to be consumed by your application
  • The SAML assertion was recently issued, and hasn’t expired
  • The SAML assertion isn’t being repeated by an imposter

There is now only one major validation you need to worry about: what if the customer’s identity provider is being malicious?

Handling malicious identity providers

Identity providers will diligently issue any assertion that the relevant IT admin tells them to. When your customer’s Okta sends you an assertion, the contents of that assertion are vouched for only by that customer. It’s not vouched for by Okta itself.

To make this concrete: it’s trivial to create an Okta account for abraham.lincoln@whitehouse.gov., even if you don’t work at the White House. You don’t have to verify an email or do anything like that. You can just stick whatever you want in any IDP, including the popular ones like Okta.

So your final security step in handling SAML is this:

AcmeCorp just told me to log a user in as bob@acmecorp.com. Is bob@acmecorp.com a user that AcmeCorp “owns” in my product?

There are a few ways you can do this, but the simplest way to start is to make an allowlist of domains, which you (not your customer) control, associated with every SAML-using customer. Only honor SAML logins for users whose email are in that allowlist.

Effectively, this approach makes it possible for each of your customers to “own” domains in your system. Unless they’re marked as owning a domain — something you control, not your customer — then they can’t do SAML logins into that domain.

When you use SSOReady, you have to associate a list of domains with each of your customers. SSOReady will enforce that SAML logins for a customer always agree with this list, which you control.

The biggest vulnerability you should worry about is one customer putting another customer’s email address into their identity provider, and then trying to log in as them. A whitelist is a simple, reliable way to stop this.

You do not need to worry about an identity provider being “wrong” about its own employees. The entire point of SAML is to let you delegate one company’s logins to an identity provider that company controls. It’s beyond your control to prevent an identity provider from “attacking itself”. It is in your control, and it is your responsibility, to make sure you don’t accidentally delegate one company’s logins to another company’s identity provider.

Logging the user in

You can now proceed to log the user in. Take whatever system you normally use to log users in (such as if they logged in via password, or “Log in with Google”, etc.), and give the user’s web browser a login session in your normal way — be it a cookie, a JWT bearer token, or anything else.

When you were deciding whether to honor a SAML login, you had to validate whether the SAML assertion is expired. Engineers sometimes think they need to make their application sessions last just as long as the SAML assertion is valid. This is not the case.

You don’t need to make the NotOnOrAfter of a SAML assertion affect how long your application sessions last. It’s typical for IDPs to make assertions very short-lived (Okta defaults to 10 minutes), because the goal is to make it harder for attackers to intercept and replay SAML assertions. But your application’s sessions can be much longer, because they aren’t communicated across multiple trust boundaries like SAML assertions are.

In other words: don’t worry about this. Just give the user a session as usual, with your usual session duration.

You should strongly consider implementing an audit log of every SAML assertion you receive, and whether you decide to honor it or not. You should log the entire SAML assertion; if one of your XML-related dependencies has a new vulnerability discovered, you will need these logs to determine if that vulnerability has been exploited against you.

If you use SSOReady, you will have an audit log event for every SAML login. These include a timestamp, a complete record of the assertion, and details on any errors that may have made the SAML assertion invalid.

Beyond this, you may want to give your customers a way to disable non-SAML logins. This doesn’t affect how you handle a SAML login; rather, making SAML logins mandatory for a customer gives that customer the guarantee that nobody is going around the benefits of SAML to your customer’s CISO.
